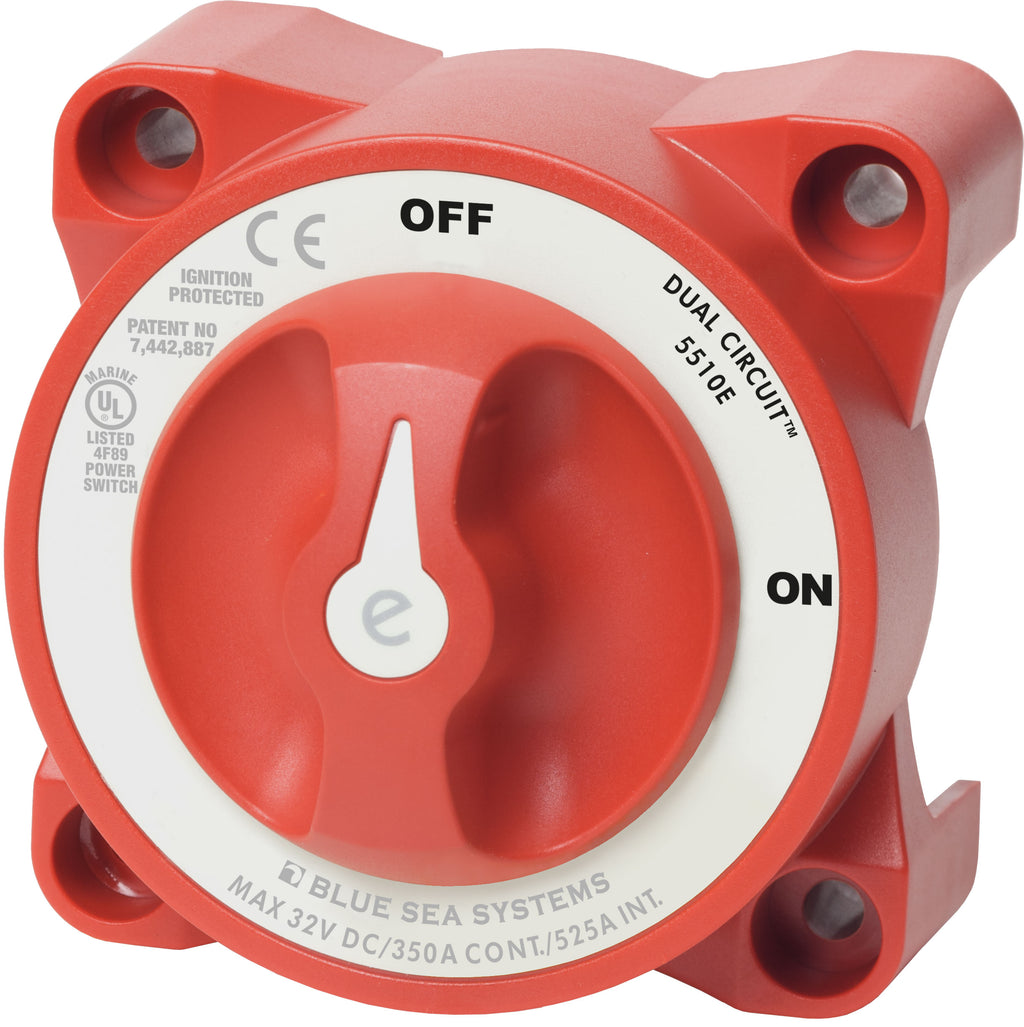

Blue Sea Systems e-Series Dual Circuit Battery Switch
Model: 5510E-BSS- 350 Amps continuous rating for inboard gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 3/8"" (M10) ring terminals
- 7/8"" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface, rear, or front panel mounting options
- Tactile indicator conveys knob position by feel
- Waterproof — rated IP66 from water projected in powerful jets
- Ignition protected—safe for installation aboard gasoline powered boats
Switch Type | Dual Circuit |
Color | Red |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 32V DC |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 350A |
Intermittent Rating | 525A (5 min) |
Cranking Rating 30 sec | 700A per circuit |
Battery Inputs | 2 |
Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
Mounting Holes | Accept 1/4"" (M6) Screw |
Stud Material | Tinned Copper |
Terminal Stud Size | 3/8"" - 16 (M10) |
