Garmin Echomap Ultra 102sv Worldwide Basemap Gt56uhd-tm Transducer


Price:
Sale price$1,960.79

Description

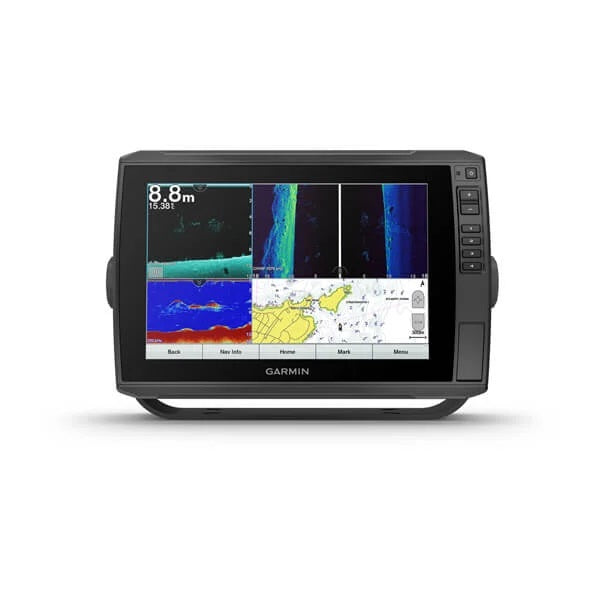

Garmin ECHOMAP™ Ultra 102sv With GT56UHD-TM Transducer

Model: 010-02526-01
  • The keyed-assist 10" touchscreen puts fishfinding know-how at your fingertips.
  • See crisp images of structure and fish in stunning detail.
  • Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps (sold separately).
  • Manage your marine experience from nearly anywhere with the ActiveCaptain® app.
  • Connect your boat to share data, sonar and charts with your other compatible devices.
  • Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

The sunlight-readable 10" touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.

ECHOMAP Ultra 102sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).

The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app.

If you have multiple compatible ECHOMAP Ultra 10" and 12" units or ECHOMAP Plus or UHD 7" and 9" units on your boat, you can share information — such as sonar, user data and charts — among them.

Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.

Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.

Specifications
General
PHYSICAL DIMENSIONS 11.6"" x 7.7"" x 3.9"" (29.5 x 19.5 x 9.8 cm)
DISPLAY SIZE 8.5" x 5.4"; 10"" diagonal (21.7 cm x 13.6 cm; 25.4 cm diagonal)
DISPLAY RESOLUTION 1280 x 800 pixels
DISPLAY TYPE WXGA display
WEIGHT 4.0 lbs (1.8 kg)
WATER RATING IPX7
POLARIZED SUPPORT Yes
POWER CONSUMPTION 26 W
ANTENNA Internal or external over NMEA 2000
MOUNTING OPTIONS Bail or flush
RECEIVER 10 Hz
GARMIN MARINE NETWORK™ PORTS 2 (large connector)
TRANSMIT POWER 600 W (RMS) / 4,000 W (peak to peak)
Maps & Memory
ACCEPTS DATA CARDS 2 microSD™ cards
WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
ROUTES 100
Outdoor Recreation
TIDE TABLES Yes
Chartplotter Features
GARMIN SONAR COMPATIBLE Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes
GCV™ BLACK BOX SONAR SUPPORT Yes
ACTIVECAPTAIN COMPATIBLE Yes
SAILING FEATURES Yes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes
FREQUENCIES SUPPORTED CHIRP High-Wide: 150-240 kHz
Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
CHIRP ClearVü: 455 kHz (425-845 kHz)
Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
CHIRP SONAR TECHNOLOGY Yes (Built-in)
CLEARVü Yes with CHIRP (built-in)
SIDEVü Yes with CHIRP (built-in)
MAXIMUM DEPTH 2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes
WATER TEMPERATURE LOG AND GRAPH Yes
SONAR RECORDING Yes
SONAR HISTORY REWIND Yes
Connections
NMEA 2000® COMPATIBLE Yes
TRANSDUCER PIN NUMBERS 1 — LVS sonar, 1 — 12 pin scanning sonar
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
WIRELESS CONNECTIVITY Yes

What's in the Box:
  • ECHOMAP Ultra 102sv with worldwide basemap
  • GT56UHD-TM transducer
  • Power/data cable
  • Tilt mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
