Description

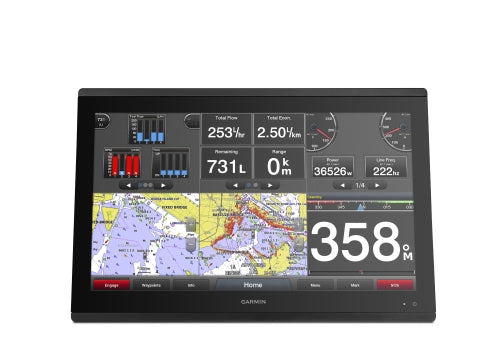

Garmin GPSMAP8622 22-inch Full HD Display with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Model: 010-01511-50- Features a 22" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
- Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush
- Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia
- ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more
- See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
- For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices
- Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
- SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
- Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
- Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more.
- Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and mapping cards
The GPSMAP® 8622 chartplotter features a 22" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the LiveScope™ System and the entire live sonar product line, which allow you to clearly see fish swimming around and below your boat in real time (transducers sold separately). The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use OneHelm™ to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.
SpecificationsPhysical & Performance | |
Dimensions | 20.8in x 13.8in x 2.8in (52.8 cm x 35.1 cm x 7.1 cm) |
Display size | 18.8in x 10.6in (47.8 x 27.0 cm) |
Display resolution | 1920 x 1080 pixels |
Display type | Touchscreen IPS display (anti-glare finish) |
Water rating | IPX7 |
Power consumption | Max power usage at 10 Vdc: 59 W |
Antenna | External only |
Mounting options | Flush or Flat |
Receiver | 10 Hz high-sensitivity |
Garmin Marine Network™ ports | 4 |
Preloaded maps | Garmin Navionics+ coastal and inland water charts for the U.S. and Canada |
Accepts data cards | 2 SD Cards (with Garmin SD card reader accesory) |
Waypoints | 5,000 |
Routes | 100 (250 waypoints each) |
Track log | 50,000 points; 50 saved tracks, with 5000 points each |
Tide tables | Yes |
Garmin Radar compatible | Yes |
Garmin Sonar compatible | Yes |
Garmin SmartMode compatible (customizable monitor presets) | Yes |
Supports AIS (tracks target ships position) | Yes |
Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
Garmin Meteor™ Audio System compatible | Yes |
Supports FUSION-Link™ compatible radios | Yes |
GSD™ Black Box sonar support | Yes |
GCV™ Black Box sonar support | Yes |
ActiveCaptain compatible | Yes |
Garmin Helm compatible | Yes |
GRID™ (Garmin Remote Input Device) compatible | Yes |
Dual-frequency (50/200 kHz) sonar capable | Yes (with external black box, sold separately) |
Dual-beam (77/200 kHz) sonar capable | Yes (with external black box, sold separately) |
CHIRP sonar technology | Yes (with external black box, sold separately) |
ClearVü | Yes (with GCV™ black box, sold separately) |
SideVü | Yes (with GCV™ black box, sold separately) |
NMEA 2000® compatible | Yes |
NMEA 0183 input ports | 4 |
NMEA 0183 output ports | 2 |
Video input ports | 1 - BNC composite |
Video output ports | 1 - HDMI |
Wireless connectivity | Yes |
What's in the Box:
- GPSMAP 8622 Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
- Trim piece snap covers
- GPS 19x NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
- Protective cover
- Flush mount gasket and hardware
- Power cable
- NMEA 2000 2 m backbone/drop cable
- NMEA 2000 6 m backbone cable
- NMEA 2000 power cable
- NMEA 2000 T-connector & terminator kit
- Manual case with documentation
