Description

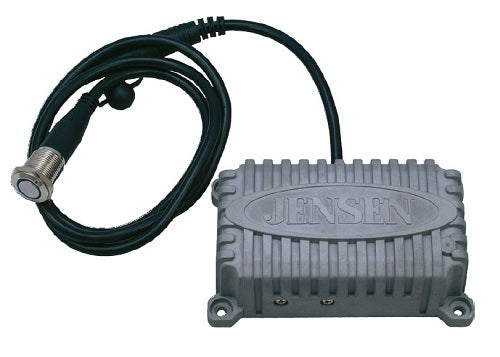

JAHD240BT
2-Channel Bluetooth Amplifier
- 80 watt max power (40 watt RMS)
- Bluetooth audio (A2DP)
- Waterproof (IPX6)
- 4 Ohm ~ 8 Ohm stable
- Operating voltage: 10 - 18VDC
- Frequency response: 20 Hz - 20KHz
- Flush mount lighted chrome switch
- Epoxy potted enclosure
- 10 Amp fuse in waterproof holder
- Corrosion resistant (ASTM B117)
- Meets ASTM D4329 UV exposure
General Specifications
Power System 12V DC
Operating Voltage Range 10V to 16V
Current Draw @ 12V
Idle 1 mA
Nominal 2.6 A
Maximum 5.0 A
Operating Temperature Range -22°F to 185°F
Storage Temperature Range -40°F to 185°F
Maximum Relative Humidity 100%
Product Weight (unpackaged) 1.5 lb
Output Power RMS 2 x 20Watts
Output Power Maximum 2 x 40Watts
Total Harmonic Distortion (1W @ 1Khz) 0.5%
Applied Test Suite Environ/ Electrical ASA ES0013
Regulatory Certification FCC, CE, Bluetooth, E-Mark, UL60065
