Description

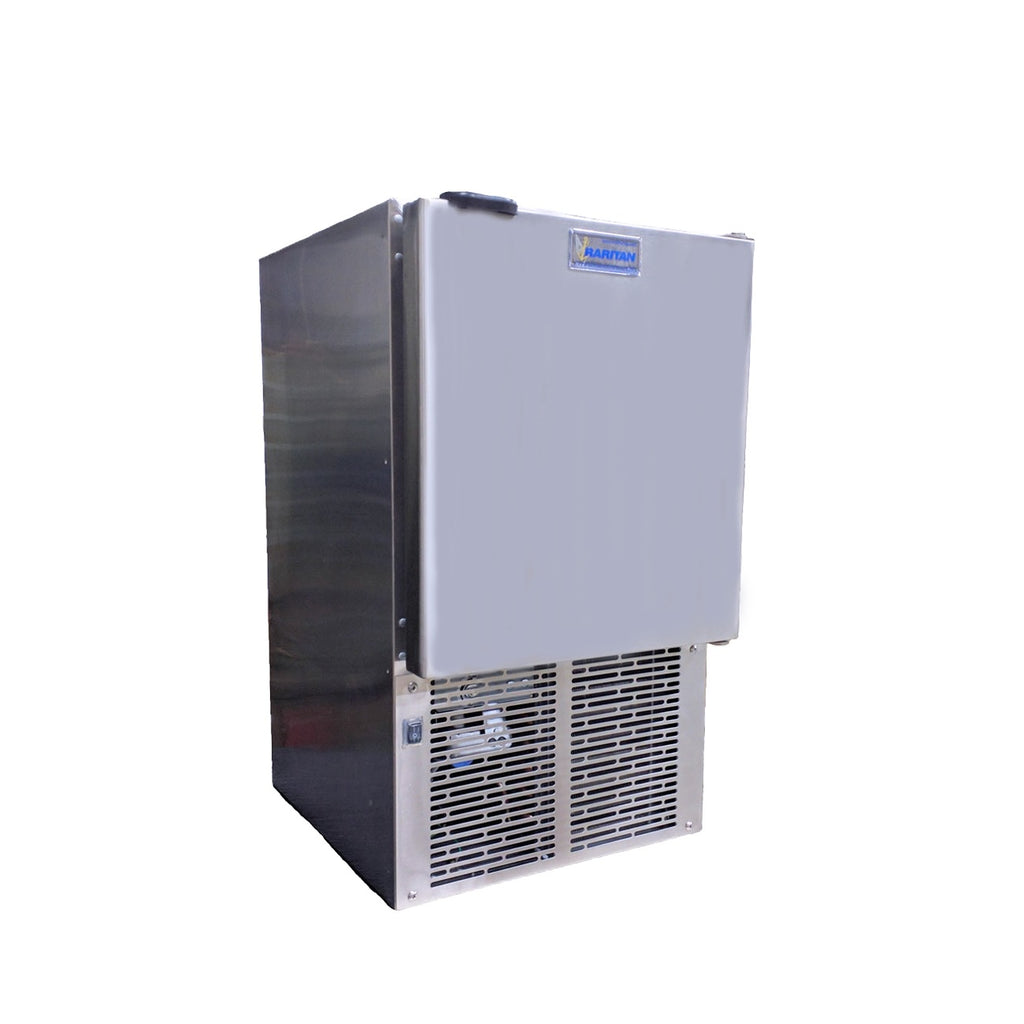

Raritan 87 Series Iceamaker
Built-in Flange, Free Standing 120V
Model: 87B515-1UPC: 85462034404
- Improved controls for more efficient operation.
- Cabinet and door built to last in harsh marine environments.
- Removable ice bucket stores up to 11 lbs of crescent ice (1/2? W x 3/4? H x 2-1/2? L)
- No drain required makes it easy and inexpensive to install.
- Only requires a 1/4? outside diameter water line.
- Does not require additional hinge clearance for door swing.
- Includes flange.
- No additional side space required for ventilation.
- Water Pressure Operating Range 20-120
- All ventilation from front, limited vent in back of unit. No additional clearance required around the sides.
- Adjustable rubber leveling feet
- Water supply Inlet size 1/4? OD and requires 3/4 space behind the unit for clearance
- Water supply inlet located in lower right of rear opposite of the power cord
Electrical requirements | 115V/60Hz with USA plug |
Volatage range | 104V~127V |
Maximum amp fuse | 15amps |
Dimensions | |
Body | 24 1/2"" H x 14 W x 16 1/2"" D |
Flange | 25 7/16"" H x 15 1/2"" W |
