Description
Simrad SS60 Stainless Steel 600 W Thru Hull 50/200 Khz Depth/Temp (12° tilt)
Model: 000-13785-001- Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
- Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
- Provides extremely accurate data.
- The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
- The low profile housing minimises drag with just 5mm extending outside of the hull.
- Easily connect to NSSevo3, Lowrance HDS G3

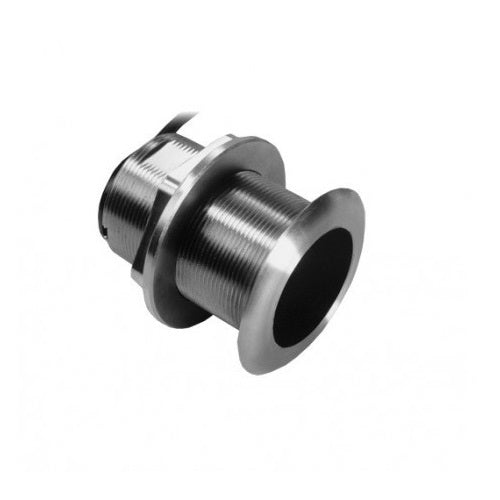

The SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
SpecificationsFrequency | 50/200 kHz |
Power rating | 600 watts |
Speed sensor | No |
Temperature sensor | Yes |
Mounting style | Thru Hull |
Elements | 1 |
Beamwidth @ -3db | 45 (50 kHz) 12 (200 kHz) |
Cable length | 10 meters |
Connector | 9-pin black |
