Blue Sea 5024 4-gang Battery Terminal Fuse Block St Ato/atc And Cover


Price:
Sale price$40.59

Description

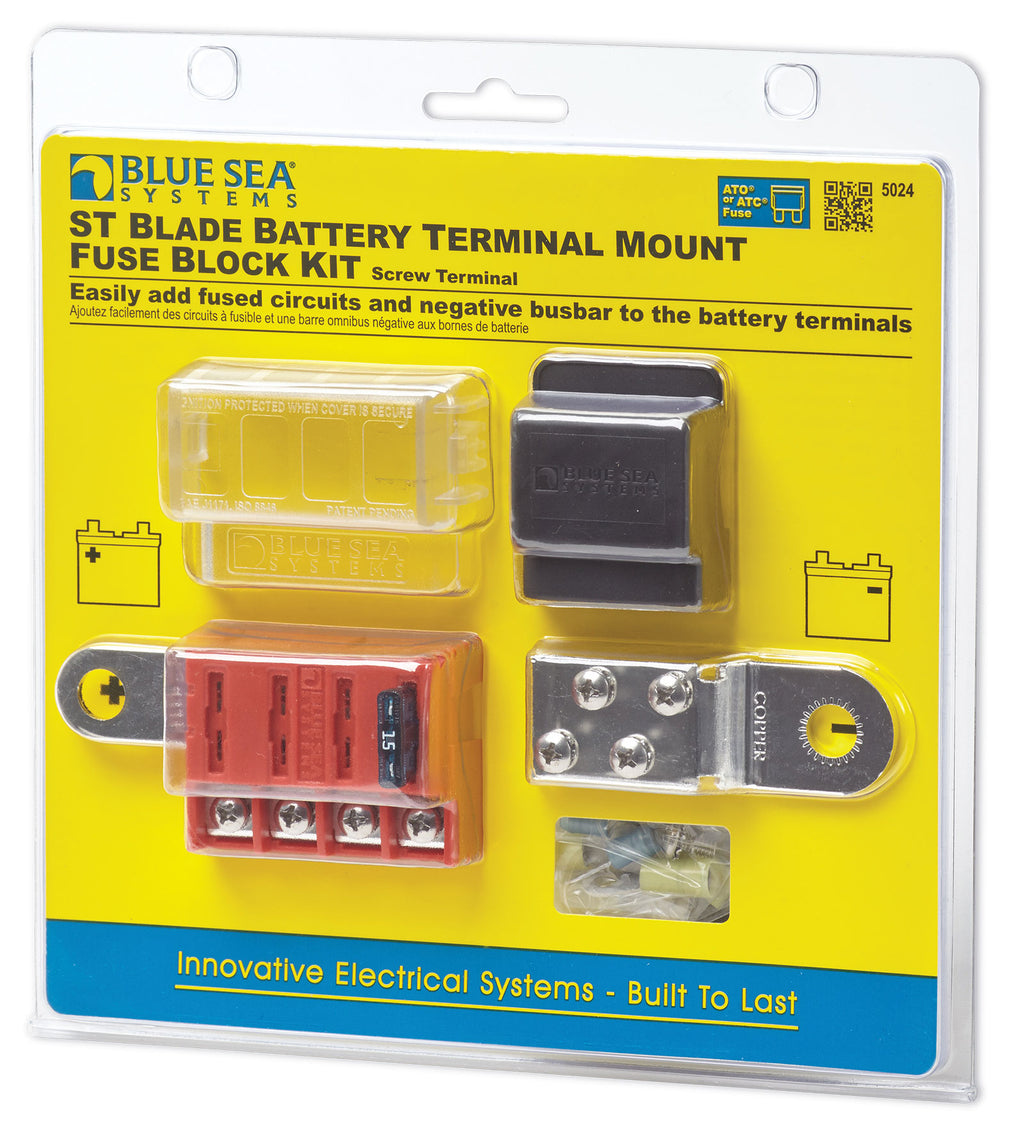

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit

Model: 5024
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Nylon insulated ring terminals included for each screw terminal
  • Accepts small format circuit labels
  • Insulating cover meets ABYC/USCG insulation requirements
  • Ignition Protected—meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Includes a 4-circuit negative busbar
  • Includes write on labels
  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications
Circuits 4
Maximum Amperage 100A per block
30A per circuit
Maximum Voltage 32V DC
Bus Material Tin-Plater Copper C11000
Mounting Hole 3/8"" (M10) Stud
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32
Weight 0.50lb (0.23 kg)
