Name: Blue Sea 5035 6-gang Fuse Block St Ato/atc Independent Circuits And Cover
Brand: Blue Sea Systems
SKU: WTBSS5035
Price: 48.18 USD
Availability: InStock

Markem Catchem - Fishin n Riggin, it's what we do! Give us a call today 231-649-0467

Blue Sea 5035 6-gang Fuse Block St Ato/atc Independent Circuits And Cover

Roll over image to zoom in Click on image to zoom

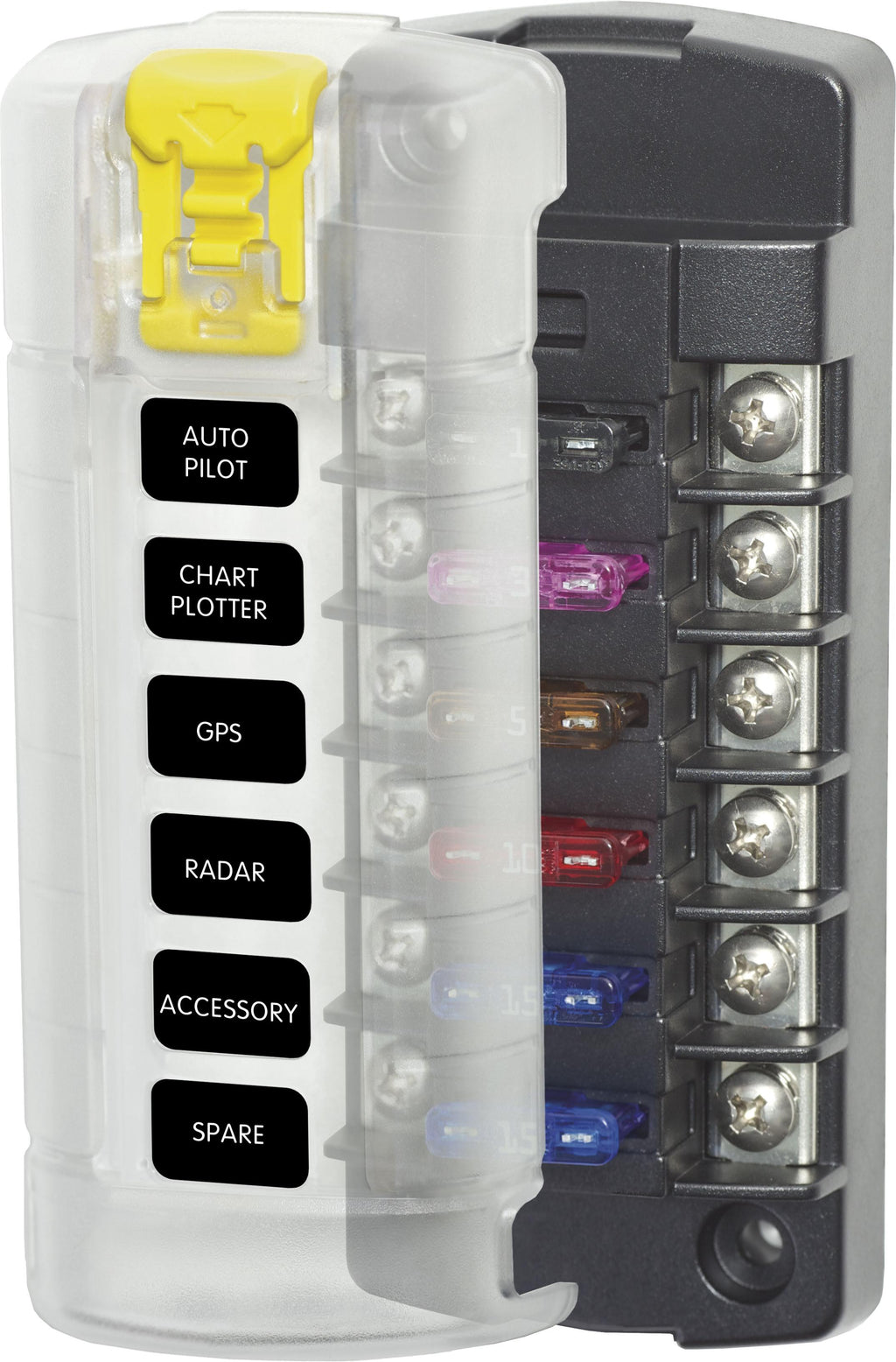

Blue Sea Systems ST Blade Fuse Block - 6 Independent Circuits with Cover

Model: 5035-BSS

Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
Clear insulating cover with label recesses accepts Small Format Labels
Spare fuse holder in cover
Accepts ring or snap fork type terminals
Includes two terminal block jumpers

Specifications

Circuits	6
Maximum Amperage	30A per circuit 40A per jumped circuit group
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 with Captive Star Lockwasher
