Description

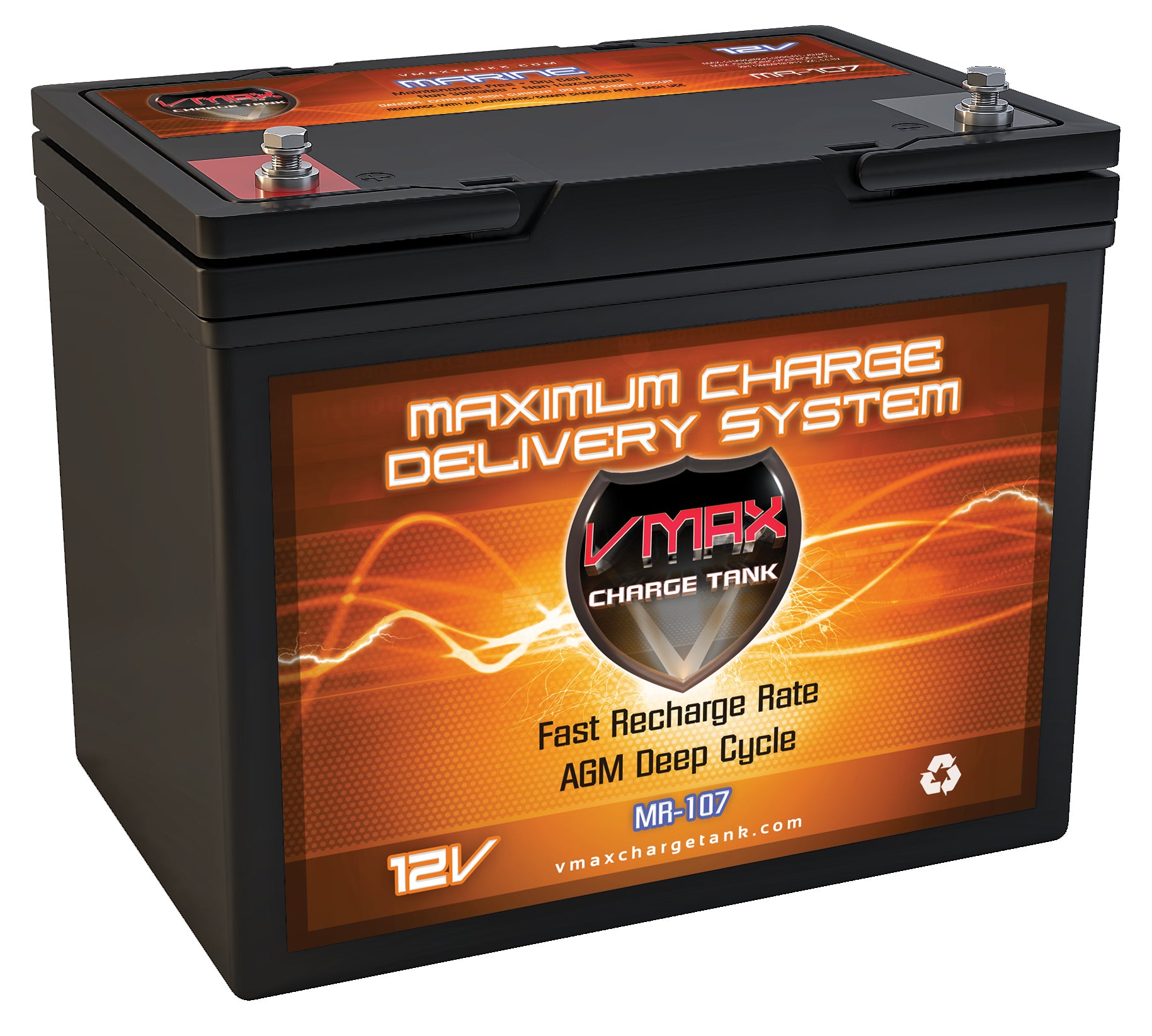

MR107-85
| Nominal Voltage | 20Hr Capacity |
RC (min) |
PHCA*** |
MCA | Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V | 85AH |
160 |
1380A |
700A |
8mm (included) |
10.2"w x 6.6"d x 8.2"h (8.5"th**) | 55lb |
5A-25A |
14.4-14.9V |
13.5V-13.8V |
Recommended Charging Options:
- AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used.
- Vehicle Alternator: 14V-15V.
- RV converter: 14V-15V.
- Solar Panel: 135W-350W.
- Wind Turbine: 135W-350W.
- Charge Controller: 15A-UP.
* Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.
**Total Height including terminal post.
*** 3sec Pulse Hot Cranking Amps.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
Temperature Compensation:
- Cycle use: -30mV/C
- Standby use: -20mV/C
UPC: 804879255338
BCI Group Codes*:
Matching Termination: 24 (+ on L.H.S. & - on R.H.S)
