Description

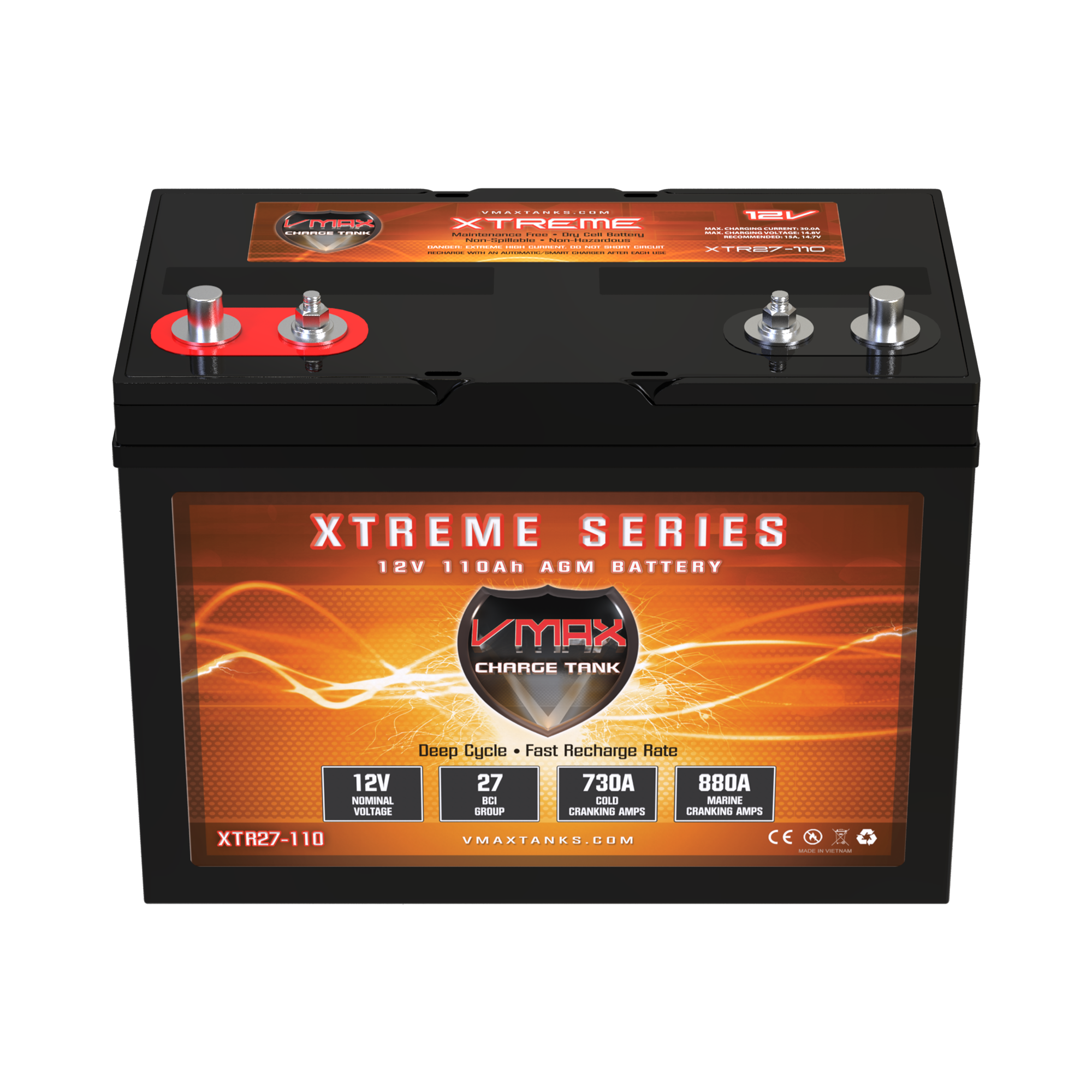

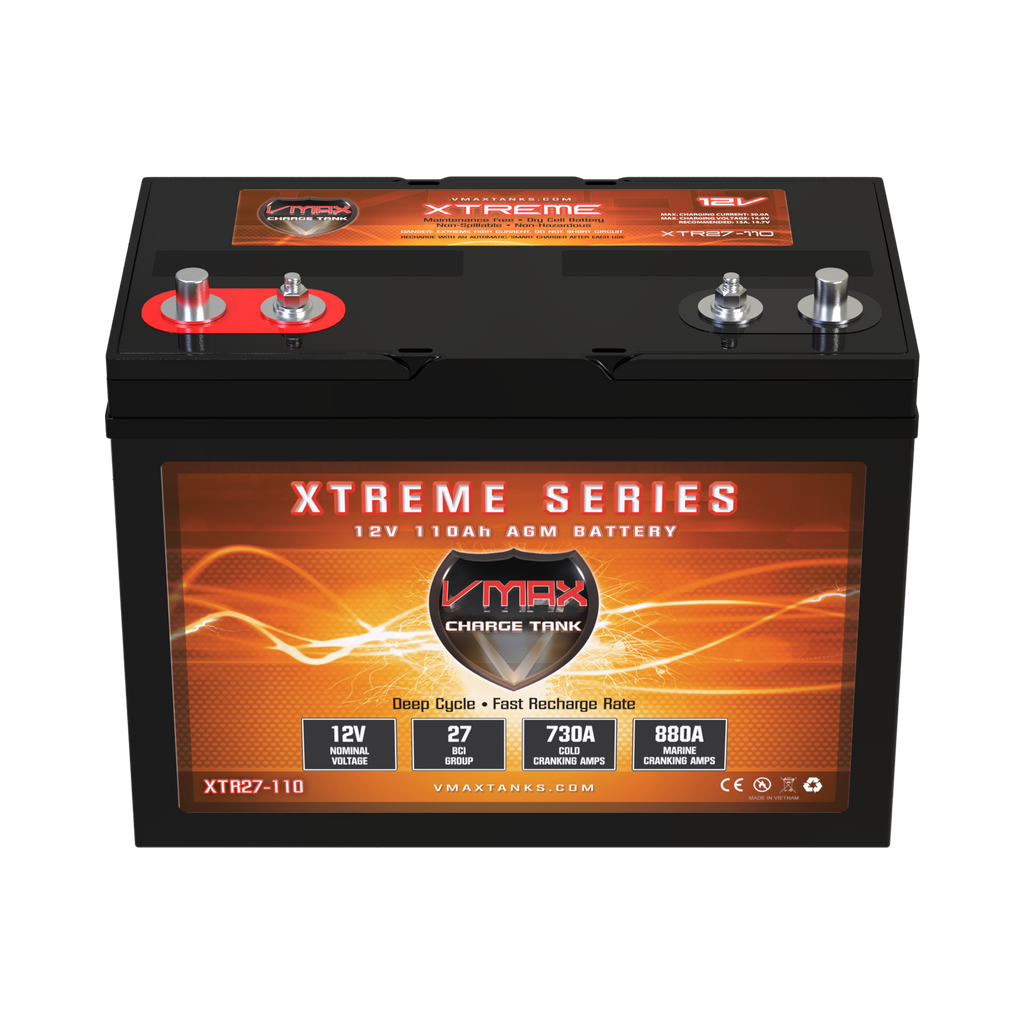

XTR27-110
Superior Plates with an expected life span of 10 to 12 years in float service applications.
| Nominal Voltage | 20Hr Capacity | CCA |
MCA |
RC (min) |
Energy (kWH) |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V | 110AH |
730A |
880A |
220 |
1.46 |
SAE+5/16" STUD | 12"w x 6.6"d x 8.5"h/9.2th** | 67lb |
10A-35A |
14.6V-14.9V |
13.5V-13.8V |
|
25A @ 1.75/Cell 220Min |
|
|
75A @ 1.75/Cell 60Min |
Short Circuit Current: 2050A
Max Discharge Current: 1000A (5s)
Internal Resistance: 3.5 mOhms
Recommended Charging Options:
- AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used.
- Vehicle Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 150W-400W.
- Wind Turbine: 150W-400W.
- Charge Controller: 15A-UP
* Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.
**Total Height including terminal post.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 32~120F
- Storage: -4~140F
Temperature Compensation:
- Cycle use: -30mV/C
- Standby use: -20mV/C
UPC:030955763576
BCI Group Codes*:
Matching Termination: 27 (+ on L.H.S. & - on R.H.S)
